特性 Feature |
单位 |
|
| 1 |

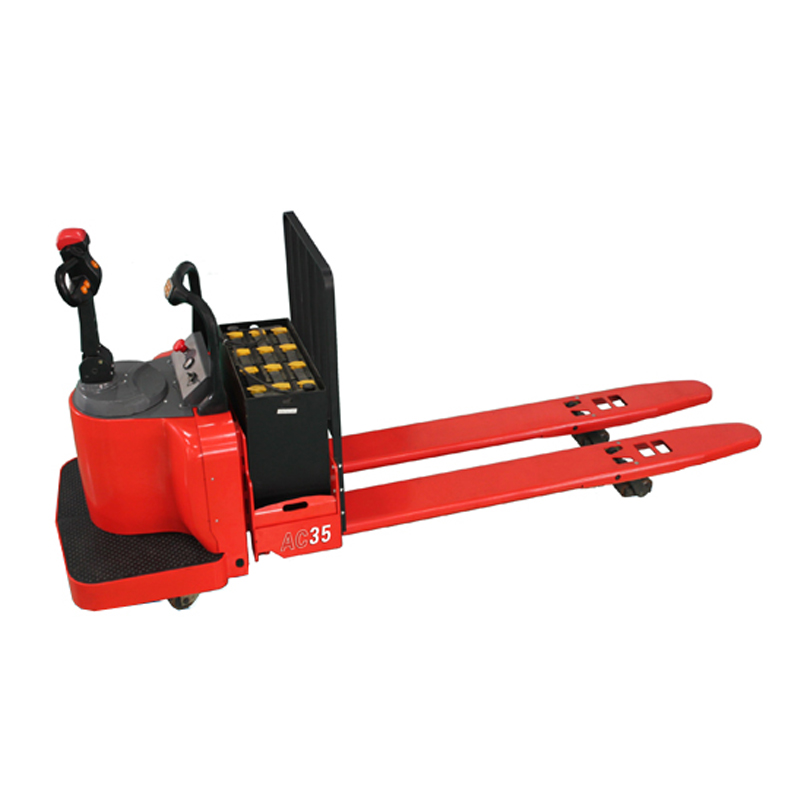

型号 Model |
|
CBD35 |
| 2 |
配置号 Configuration No. |
|
510 |
| 3 |
额定载重 Load capacity |
kg |
3500 |
| 4 |
适用托盘 Apply to Pallet |
mm |
双托盘 Double Pallet |
| 5 |
轴距 Wheel base |
mm |
2084 |
| 6 |
操作类型 Operating type |
|
站驾式/Rider |
| |
车轮 Wheels |
|
|
| 7 |
轮子类型(前/后) Wheels type |
|
PU |
| 8 |
驱动轮/平衡轮/承重轮数量 Wheel quantity
Driving wheel/Balance wheel /Bearing wheel |
|
1/4/2 |
| 9 |
驱动轮尺寸Driving wheel size |
mm |
￠228*93 |
| 10 |
承重轮尺寸Balance wheel size |
mm |
￠84×152
（双轮/Double wheels） |
| 11 |
平衡轮尺寸Bearing wheel size |
mm |
￠115x55 |
| |
尺寸 Dimension |
|
|
| 12 |
货叉最低离地高度 Min.fork lowered height |
mm |
85 |
| 13 |
货叉最大起升高度 Max.fork lifting height |
mm |
230 |
| 14 |
最大起升行程 Max.lifting height |
mm |
145 |
| 15 |
货叉外侧间距 Outside width between forks |
mm |
680 |
| 17 |
货叉长度 Fork length |
mm |
2432 |
| 18 |
货叉宽度 Fork width |
mm |
250 |
| 19 |
货叉厚度 Fork thickness |
mm |
60 |
| 20 |
整车全长，踏板收起/放下 Overall length |
mm |
3605 |
| 21 |
车体宽度 Overall width |
mm |
930 |
| 22 |
整车高度（含手柄）
Overall height(With handle) |
mm |
1536 |
| 23 |
整车高度（不含手柄）
Overall height(Without handle) |
mm |
1280 |
| 24 |
最小转弯半径，踏板收起/放下
Min.Turning radius |
mm |
2708 |
| 25 |
最小直角堆垛通道宽度，踏板收起/放下
（托盘800×1200，1200沿货叉放置）
Min.Aisle width for pallets 800×1200 |
mm |
3650 |
| |
性能 Performance |
|
|
| 27 |
最大行驶速度，满载/空载
Travel speed,laden/unladen |
km/h |
11/14 |
| 28 |
最大起升速度，满载/空载
Lift speed,laden/unladen |
mm/s |
30/35 |
| 29 |
最大下降速度，满载/空载
Lowering speed,laden/unladen |
mm/s |
45/40 |
| 30 |
爬坡度，满载/空载
Gradeability,laden/unladen |
% |
5/12 |
| |
电气配置 Electrical configuration |
|
|
| 31 |
驱动电机 Drive motor |
KW |
AC 4.2 |
| 32 |
起升电机 Lift motor |
KW |
DC 2 |
| |
转向电机 Steering motor |
KW |
DC0.15 |
| 33 |
蓄电池电压/容量 Battery voltage / capacity |
V/Ah |
24/360 |
| 34 |
制动 Brake |
|
电磁/再生
Electromagnetic / Regenerative |
| 35 |
控制器型号 Controller |
|
HELI |
| |
重量 Weight |
|
|
| 36 |
蓄电池重量 Battery weight |
kg |
400 |
| 37 |
自重（包含蓄电池）Service weight with battery |
kg |
1120 |
