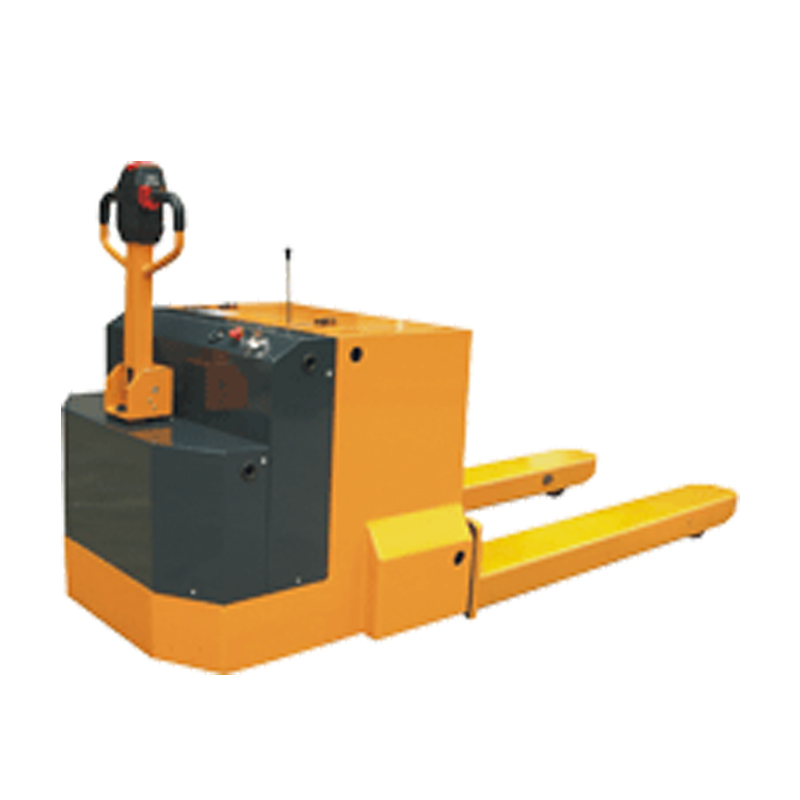

Name:CBE50Z Heavy Duty Power Pallet Truck
Click to view larger
 Advanced AC control system eliminating the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
1.The padded armrest supports the operator’s upper arm and shoulder, reducing operator fatigue.
2.Built-in pressure  relief valve protects the trucks from overloads.
3.Emergency power disconnect.
4.Stepless speed control.
5.Big battery capacity 320Ah, drive motor 2.2KW. The work efficiency and reliability are much improved.
6.The deadman brake device in the compartment makes operation safer.
7.Built-in hood lock device and safety lock device increase the safety level of the trucks.
model   CBE-50
load capacity kg 5000
Load center distance mm 600
min/max lifting height mm 150-250
single fork width mm 230
fork length/width mm 1200/685
running speed full load/no load km/h 3.5/2.0
lifting speed full load/no load mm/s 15/30
descent speed full load/no load mm/s 20/18
driving wheel PU mm Φ260*150
front wheel mm Φ100*100
balance wheel  mm Φ100*45
driving motor w 1800
steering motor W 1500
pump station parameter w 3000
battery Ah D-420
control  form    handing control
speed governing system   non-pole speed adjustment
min  turning radius mm 1400
overall size mm 2250*880*1400
self weight kg 1360
