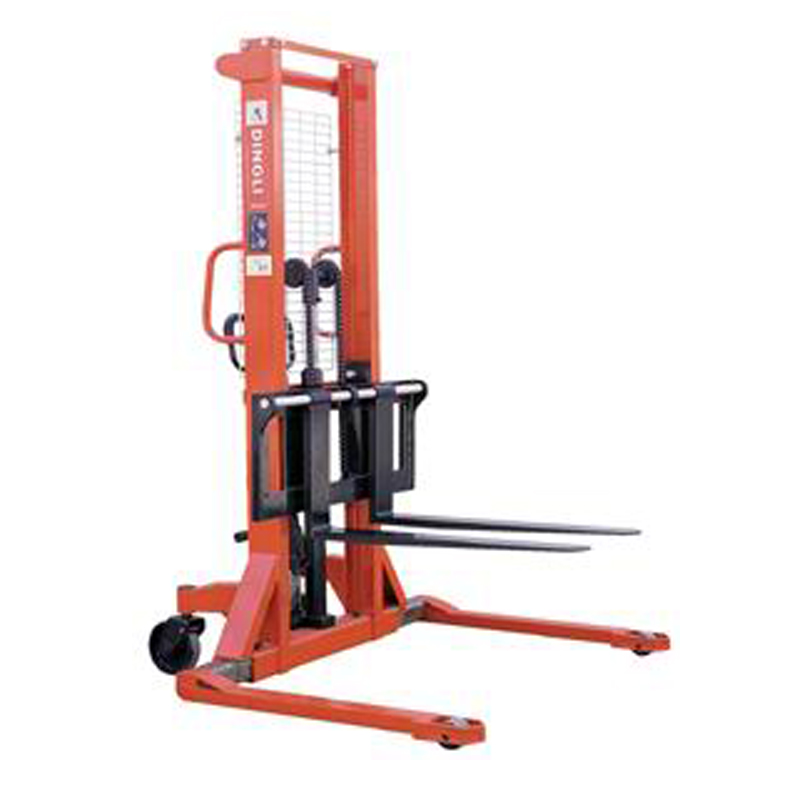

Name:CTY (Straddle Legg) Manual Stacker
Click to view larger
  Feature:
1.Robust Steel profile construction.
2.An economical lift to handle tasks from transporting dies and moulds skids and pallets.
3. Sturdy and compact enough to fit through standard doors and to operate in congested areas.
4.Precision engineered for smooth performance and exceptional durability.
5.Lifting function operated by foot and hand controls.
  Specifications:
Model   CTY1000-16W1 CTY1000-16W2
Capacity  kg 1000 1500
Width of Leg mm 1000 1250
Min.fork height  mm 85 85
Max.fork height mm 1600 1600
Min.mast height mm 1980 1980
Size of fork mm 150/160x60 150/160x60
Length of fork mm 900/1150 900/1150
Width of overall fork mm 330~740/550(fixed)
Radius of gyration mm 1250/1380 1250/1000
Fork rollers mm Φ74x70 Φ74x70
Big wheel mm Φ180x50 Φ180x50
