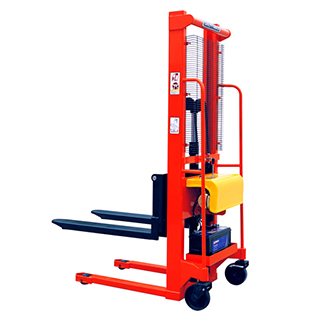

Name:CTDS semi-electric stacker (Economic)
Click to view larger
  Feature:
Features:
1) Max. load weight: 1,000kg (2,200lbs)
2) 12V DC hydraulic system
3) Operates smoothly up and down
4) Compact design and top quality mast construction
5) Safety guard on load roller and steering wheel
6) Light and easy manual steering system
7) Combines power and simplicity
8) Ideal for small workspaces and production areas
This Stackers combine power and simplicity into these walk behind type units.
The Stackers are ideal for small workspaces and production areas.
They can lift up to 1,000kg (2,200 lb) loads with ease.
The forks operate smoothly up and down by hydraulic system powered by a 12V DC Motor.
  Specifications:
Capacity(kg) 1000 1000
Lifting height(mm) 80-1550 80-2450
Overall length(mm) 1465 1465
Overall width(mm) 890 890
Overall height(mm) 2005 1875
Fork length (mm) 900 900
Fork width (mm) 120 120
Fork height (mm) 30(10) 30(10)
Distance max (mm) 685 685
Distance of fork min (mm) 240 240
Lifting up speed (m/min) 5 5
Lifting down speed (m/min) 0-8(adjustable) 0-8(adjustable)
Steering radius (mm) 1190 1190
Motor 12v, 1.5kw 12v, 1.5kw
Battery 12v, 120Ah 12v, 120Ah
Charger 12v, 30A 12v, 30A
N. W. (kg) 315kg 383kg
