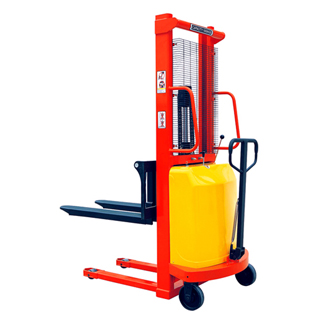

Name:CTD semi-electric stacker (single mast)
Click to view larger
  Feature:
1.Ideal for loading and unloading trucks, positioning dies, or feeding material to presses.
2.Remote control, three light LED charge status indicator, and easy to read illuminated battery status voltmeter included.
3.Equipped with safety screen and floor lock.
4.With a minimally charged battery, unit can be used even while plugged in and recharging.
  Specifications:
Model   CTD1000-16 CTD1500-16 CTD2000-16
Rated Capacity(Q) Kg 1000 1500 2000
Mast   Single Mast
Lifting Height(H) Mm 1600 1600 1600
Fork Length(L) Mm 1000 1000 1000
Fork Width(E) Mm 300~680 300~680 300~680
Load Center(C)  Mm 400 400 400
Minimum Turning Radius(R) Mm 1350 1350 1350
Lifting Motor V/Kw 12/1.5-1.6 12/1.5-1.6 12/1.5-1.6
Battery V/Kh 12/120 12/120 12/120
Charger V/Kh 12/15 12/15 12/15
Overall Length(A) Mm 1670 1670 1670
Overall Width(B) Mm 865 865 865
Overall Height(H1)  Mm 2060 2060 2060
Net Weight Kg 340 362 388
