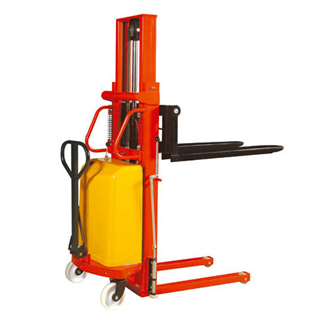

Name:CTD semi-electric stacker (duplex mast)
Click to view larger
  Feature:

This Stacker is mobile, with easy pushing or pulling by hand. All wheels are provided with double ball bearings with dust covers.

Lifting & Lowering of forks is done by the hand lever placed on the front cover. The lifting Forks are easily adjustable to decrease or increase the width as above, required for Pallets as available with user.

High quality Power pack with minimum & easy maintenance is designed for these type of stackers. Battery meets international standards and to charge the battery, 220 V AC Power supply is required to battery charger. A digital display of Battery Charging is provided on the front cover which shows sharging position of Battery while using or charging the Battery.

Excellent after sale service and parts are available over the shelf.

  Specifications:
Model No.   CTD1500-20 CTD1500-25 CTD1500-30 CTD1500-35
Rated Capacity(Q) kg 1500 1500 1500 1500
Lifting Height(H) mm 2000 2500 3000 3500
Fork Length(L) 1000 1000 1000 1000
Fork Width(E) 310-820 310-820 310-820 310-820
Load Center(C)  400 400 400 400
Minimum Turning Radius(R) 1350 1350 1450 1450
Lifting Motor V/Kw 12/1.5-1.6 12/1.5-1.6 12/1.5-1.6 12/1.5-1.6
Battery V/Kh 12/150 12/150 12/150 12/150
Charger V/Kh 12/15 12/15 12/15 12/15
Overall Length(A) mm 1670 1670 1700 1700
Overall Width(B) 810 810 930 930
Overall Height(H1)  1580 1830 2080 2330
Net Weight kg 448 470 492 515
