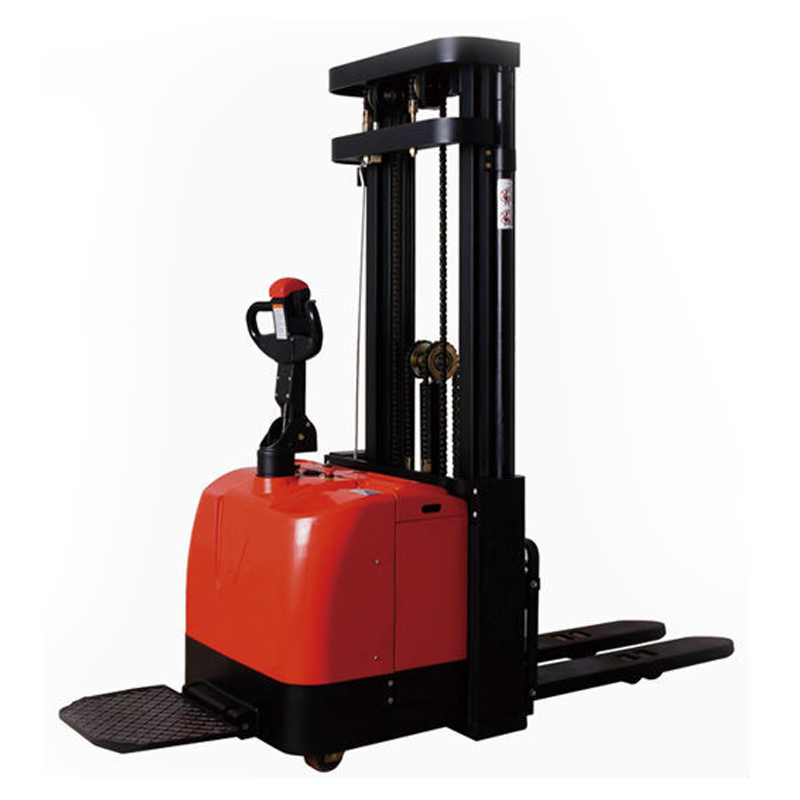

| Feature |
Unit |
|
|
| Model |
|
CDD16 |
CDD16 |
| Configuration No. |
|
950 |
350 |
| Type |
|
Narrow leg |
Narrow legs |
| Mast type |
|
Full free 3-Stage |
Full free 3-Stage |
| Load capacity |
kg |
1600 |
1600 |
| Load center |
mm |
600 |
600 |
| Wheel base |
mm |
1375 |
1375 |
| Operating type |
|
Walkie / Stand On |
Walkie / Stand On |
| Wheels |
|
|
|
| Wheels type |
|
PU |
PU |
Wheel quantity
Driving wheel /Balance wheel/Loading wheel |
|
1/2/4 |
1/2/4 |
| Dimension |
|
|
|
| Standard lift height |
mm |
3700/3900/4200/4500/4700/5000 |
5300/5500/5800 |
| Lowered fork height |
mm |
90 |
90 |
| Fork size (length/width/thickness) |
mm |
1150(1220)/185/55 |
1150(1220)/185/55 |
| verall length |
mm |
2105/2525 |
2105/2525 |
| Overall width |
mm |
957 |
957 |
| Max extend height |
mm |
4200/4400/4700/5000/5200/5500 |
5800/6000/6300 |
| Mast lowered height |
mm |
1800/1900/1985/2085/2135/2235 |
2520/2590/2690 |
| Min. Turning radius |
mm |
1630/2040 |
1630/2040 |
| Min. Aisle width for pallets 800×1200 |
mm |
2230/2625 |
2230/2625 |
| Min. Aisle width for pallets 1000×1200 |
mm |
2260/2650 |
2260/2650 |
| Min. ground clearance |
mm |
30 |
30 |
| Performance |
|
|
|
| Travel speed, laden/unladen |
km/h |
5/5 |
5/5 |
| Lift speed, laden/unladen |
mm/s |
130/230 |
130/230 |
| Lowering speed, laden/unladen |
mm/s |
130/230 |
130/230 |
| Gradeability,laden/unladen |
% |
5/7 |
5/7 |
| Electrical configuration |
|
|
|
| Drive motor /Lift motor /Steering motor |
KW |
AC1.5/DC3/DC0.15 |
AC1.5/DC3/DC0.15 |
| Battery voltage |
V |
24 |
24 |
| Battery capacity |
Ah |
280 |
280 |
| Brake |
|
Electromagnetic / Regenerative |
Electromagnetic / Regenerative |
| Controller |
|
CURTIS 1230 |
CURTIS 1230 |
| Weight |
|
|
|
| Battery weight |
kg |
235 |
235 |
| Service weight with battery |
kg |
1578 |
1610 |
