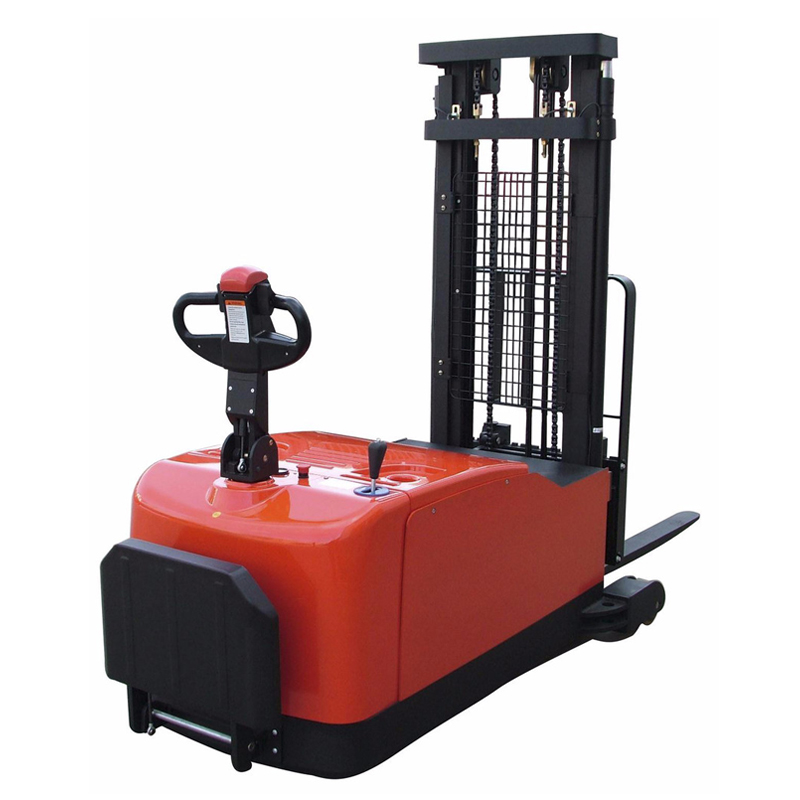

Name:CDD16-D970 CDD16-970 Counterbalanced Stacker
Click to view larger
  Feature:
Configuration and performance.
l  Electronic Power Steering system(EPS), light and low noise.
l  Two-way magnetic valve, three drop speed mode.
l  AC Driving system, No carton brush, maintenance free.
l  USA CURTIS driving controllers.
1.Electromagnetic, regenerative braking system.
2.Automatic lifting limit, proximity switch, long life.

Safety
1.Curve automatic deceleration devices, more safe.
2.Goods high position, vehicle automatic deceleration.
3.Stepless speed control system, safe and quiet.
4.Controller with Multiple automatic protection.
5.Emergency reversing device/Emergency brake switch.
6.High position automatic reduction device.
  Specifications:
  Feature 单位
1 Model   CDD16 CDD16
2 Configuration No.   D970 970
3 Type    Counterbalanced  Counterbalanced
4 Mast type    2-Stage STD Full free 3-Stage
5 Load capacity kg 1500 1600
6 Load center mm 500 500
7 Wheel base mm 1529 1529
8 Operating type   Walkie  /  Stand On  Walkie  /  Stand On
  Wheels
9 Wheels type   PU PU
10 Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
  1/0/2 1/0/2
  Dimension
11 Standard lift height mm 1400/2000/2500/3000/3300/3600/4000 3700/3900/4200/4500
12 Lowered fork height mm 55 55
13 Fork size(length/width/thickness) mm 1070/100/40 1070/100/40
14 Overall length mm 2942/3362 2942/3362
15 Overall width mm 1015 1015
16 Max extend height mm 2400/3000/3500/4000/4300/4600/5000 4350/4550/4650/5150
17 Mast lowered height mm 1230/1580/1780/2030/2130/2330/2545 1817/1917/2002/2102
18 Min.Turning radius mm 1808/2200 1808/2200
19 Min.Aisle width for pallets 800×1200 mm 3140/3520 3140/3520
20 Min.Aisle width for pallets 1000×1200 mm 3160/3538 3160/3538
21 Min.ground clearance mm 80 80
  Performance
22 Travel speed,laden/unladen km/h 5/5 5/5
23 Lift speed,laden/unladen mm/s 130/230 130/230
24 Lowering speed,laden/unladen mm/s 130/230 130/230
25 Gradeability,laden/unladen % 5/7 5/7
  Electrical configuration
26 Drive motor / Lift motor /Steering motor  KW AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15
27 Battery voltage V 24 24
28 Battery capacity Ah 270 270
29 Brake   Electromagnetic / Regenerative Electromagnetic / Regenerative
30 Controller   CURTIS 1230 CURTIS 1230
  Weight
31 Battery weight kg 245 245
32 Service weight with battery kg 2060 2100
