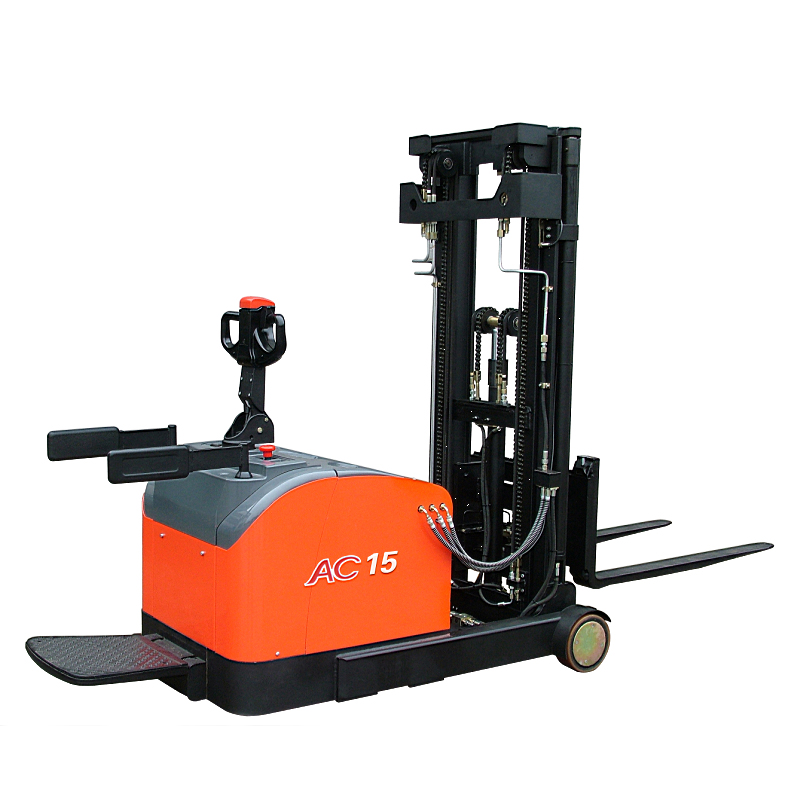

Name:CQDM12-810 CQDM15-810 reach stacker
Click to view larger
  Feature:

Advantages:
Configuration and preformance
1.Fork tilt,double oil cylinder more smoothly.
2.Elector-hydraulic integrated cotrol,multi-function handle.
3.Short wheel base and more flexible.
4.Electronic power steering system,light and low noise.
5.Two-way magnetic valve,three drop speed mode.
6.AC Driving system.No carbon brush,maintenance free.
7.USA CURTIS driving controller.
8.Electromagnetic,regenerative braking system.
9.Automatic lifting limt,proxinty switch,long life.

Safety
1.Curve automatic decaleration devices,more safe.
2.Good high position,vehicle automatic deceleration.
3.Stepless control system.safe and quiet.
4.Conteoller with Multiple automatic protection.
5.Emergency reversing device/Emergency brake switch.

  Specifications:
  Feature Unit
1 Model   CQDM12/15 CQDM12/15
2 Configuration No   810 810
3 Type   Reach Reach
4 Mast type   2-Stage STD Full free 3-Stage
5 Load capacity kg 1200/1500 1200/1500
6 Load center mm 500 500
7 Wheel base mm 1332 1332
8 Operating type   Walkie   Walkie
  Wheels
9 Wheels type   PU PU
10 Wheel quantity Driving wheel/Balance wheel/Bearing wheel   1/0/2 1/0/2
  Dimension
11 Reach distance  mm 0-425 0-425
12 Standard lift height mm 1400/2000/2500/3000/3300/3600/4000 3700/3900/4200/4500
13 Max.extend height mm 2235/2835/3335/3835/4135/4435/4835 4580/4780/5080/5380
14 Mast lowered height mm 1490/1790/2040/2290/2440/2590/2790 1832/1898/1998/2098
15 Lowered fork height mm 55 55
16 fork size(length/width/thickness) mm 1070/100/40 1070/100/40
17 Overall length  mm 2440/2896 2440/2896
18 Overall width mm 1083 1083
19 Outside whdth between forks mm 200-755 200-755
20 Tilt of fork(F/B) Grad 3/5 3/5
21 Min.Turning radius mm 1596/2040 1596/2040
22 Min.Aisle width for pallets 800×1200 mm 3023/3456 3023/3456
23 Min.Aisle width for pallets 1000×1200 mm 3044/3472 3044/3472
24 Min.ground clearance mm 60 60
  Performance
25 Travel speed,laden/unladen km/h 5/5.5 5/5.5
26 Lift speed,laden/unladen mm/s 130/230 130/230
27 Lowering speed,laden/unladen mm/s 130/230 130/230
28 Gradeability,laden/unladen % 3/5 3/5
  Electrical configuration
29 Drive motor/Lift motor/Steering motor KW AC1.5/DC3.0/DC0.15 AC1.5/DC3.0/DC0.15
30 Battery voltage V 24 24
31 Battery capacity Ah 280 280
32 Brake   Elctromagnetic/Regenerative Elctromagnetic/Regenerative
33 Controller   CURTIS CURTIS
  Weight
34 Battery weight kg 235 235
35 Service weight with battery kg 2100 2200
