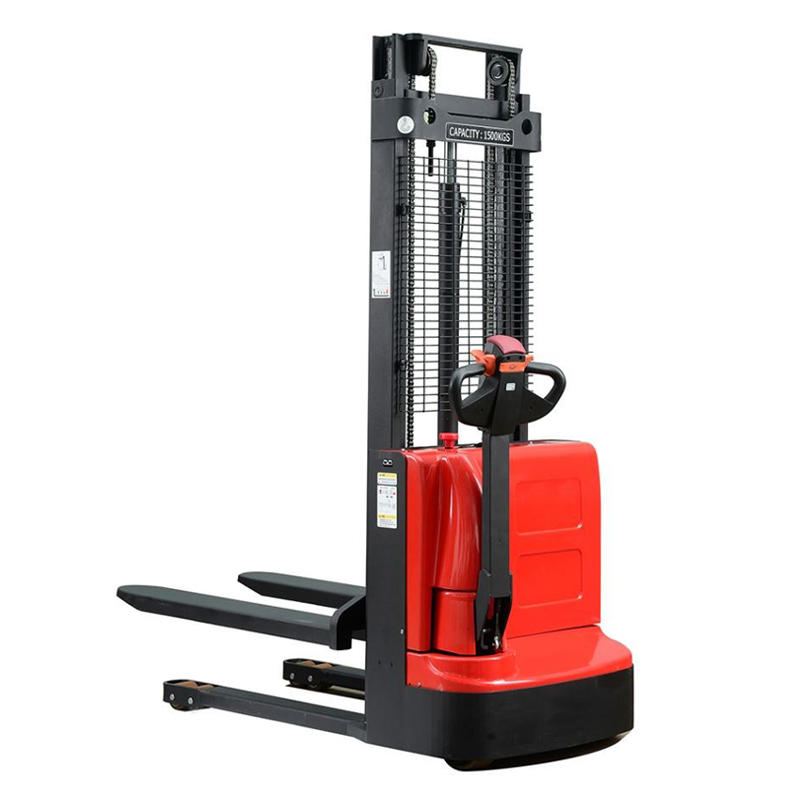

Name:CDD-P power stacker
Click to view larger
  Feature:
With the introduction of Liftstar economic electric powered stacker, customers now have more choices besides manual&semi-electric stackers and full electric stackers. Liftstar WS07/08/10 seris economic electric powered stackers feature high working efficiency but much lower procurement costs.
1. Less labor is required because of high transportation efficiency. Under the same conditions, the efficiency of  economic electric powerd stackers
are 3 times better than manual products and are 2 times better than semi-electric products, and on that account labor cost is significantly reduced.
2. Economic electric powerd stackers are suitable for middle and low frequency applications. Manual, semielectric vehicles as well as some of low requency electric vehicles can be replaced by our economic electric powerd stackers.
3. Featuring longer handle tube, Liftstar economic electric powerd stackers are very easy for steering even without EPS system.
4. WS10 series economic electric powerd stackers was introduced to market in 2012 and WS07/08 series in 2014, much upgrades have been made based on market feedbacks.
  Specifications:
Type   CDD-P
Load capacity               Q kg 1000/1200/1500
Load center                   C mm 500
Overall length              A mm 1835
Overall width               B mm 820
Min. overall height      H4 mm 1530 1780 2030 2280
Fork dimension     L×B1×H3 mm 1150×160×55
Outside width of forks  E mm 540/680
Ground clearance          x mm 30
Wheel material   PU
Driving wheel size mm φ210×70
Front wheel size mm φ80×70
Balance wheel size mm φ130×55
Min. steering radius         Wa mm 1360
Min. width of aisle   mm ≥2300
Max. height of forks           H mm 2000 2500 3000 3500
Min. height of forks          H1 mm 85
Travel speedladen/unladen km/h 3/5.5
Lift speedladen/unladen mm/s 100/150
Lower speedladen/unladen mm/s 110/120
Brake type   Electromagnetic
Power of driving motor kw 0.75 DC
Power of lift motor kw 1.5 DC
Battery capacity/voltage Ah/V 80/24 (12x2)
Net weightwithout battery kg 570 640 662 675
